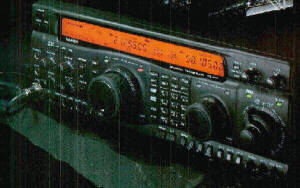

YAESU FT-920 Ricetrasmettitore HF+50 MHz all mode Gamma operativa

HF+50MHz con 100Wattdi uscita su tutte le bande

High Performance 33MIPS(milioni di operazioni al sec.)Digital Signal (DSP) operante in tutti i modi

operativi

Finali a MOSFET di nuova generazione

Veloce accordatore automatico d'antenna entrocontenuto operante anche per la banda dei 50 MHz sia in RX che in TX

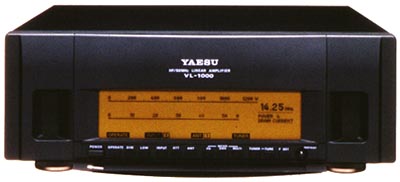

NEW PRODUCT INFORMATION NEW QUADRA SYSTEM AMPLIFIER HF/6M AMPLIFIER

Yaesu is proud to announce the new QUADRA SYSTEM H.F.+ 6-Meter Amplifier. This new Amplifier is in a class by itself with state-of-the-art features such as a full 1KW power output, Multi-Function Omni-Glow LCD Display, 4 Antenna Outputs and 2 Antenna Inputs. This new QUADRA SYSTEM Amplifier is designed to match and compliment the FT-1000/D, FT-1000MP and FT-920 HF radios.

These exciting new Amplifiers are now available through your authorized Yaesu Dealers.

FEATURES

- 1000 Watts Power Output @ 220 VAC
(500 watts on 6-meters)
- TX Range: 160 ~ 15 / 6 Meter Amateur Bands
- Large Dot-Matrix LCD Display Features The World's First Panoramic SWR Monitor
- Automatic System Monitoring with VSWR Protection
- Ultra High Speed Antenna Tuner w/ Multi-Band Memory
- Power Supply and Amplifier are Separate Units for easier installations
- 8 x MRF150 Power MOS FET
- 2 Input and 4 Output Antenna Jacks for Versatile Operation
- Direct Air Flow Cooling System Provides Efficient Dissipation of Heat
- 2 Input Voltages:
117 VAC for 500 Watts, 220 VAC for 1000 Watts
- Automatic Bandswitching w/ FT-1000D, FT-1000MP, FT-920, FT-990, FT-900C/AT
- Size: (each) 410 W x 135 H x 410 D mm
(16 1/4" W x 5 3/8" H x 16 1/4" D)
- Weight:VL-1000 Amp = 15 kg, VP-1000 Power Supply= 12 kg
